How to Use 2M2 Key Machine Cut Peugeot NE73 Key

In this instruction keycuttingmachine.org will show you the procedures on how to use 2M2 key cutting machine to cut key for Peugeot NE73 with a working key.

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (1)

Procedures:

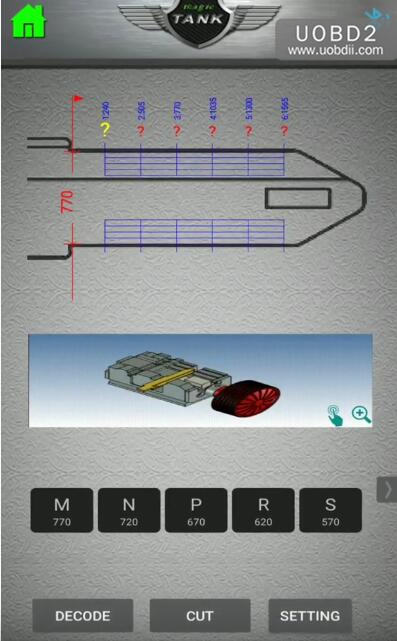

Build connection between 2M2 Magic Tank and mobile app,then enter 2M2 menu to input “NE73”

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (2)

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (3)



Now we need the working key to decode the key code

Use the stop and insert it to the right slot

Block the key shoulder and clamp it.,then press “CONFIRM” button to continue

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (4) How to Use 2M2 Key Machine Cut Peugeot NE73 Key (5)

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (6)

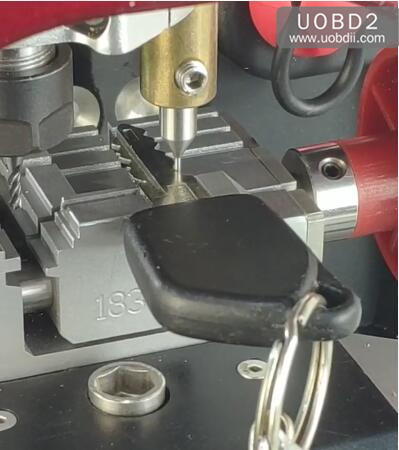

Then it will start decoding,just wait for proceed…

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (7) How to Use 2M2 Key Machine Cut Peugeot NE73 Key (8)

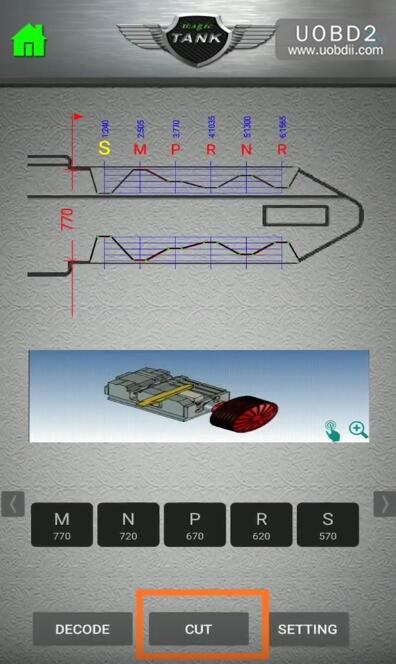

After decoding finishing,press “CUT” button

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (9)

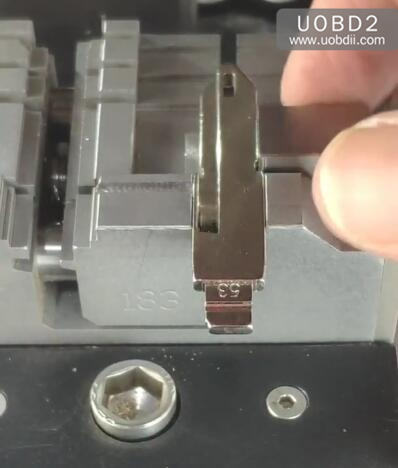

Remove the working key on the clamp,and put the blank key on.

Please set the key embryo on the left side

Let the front end of the key close to the first slot and does not exceed it.

The key remains level on the bottom and clamp it.

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (10) How to Use 2M2 Key Machine Cut Peugeot NE73 Key (11)

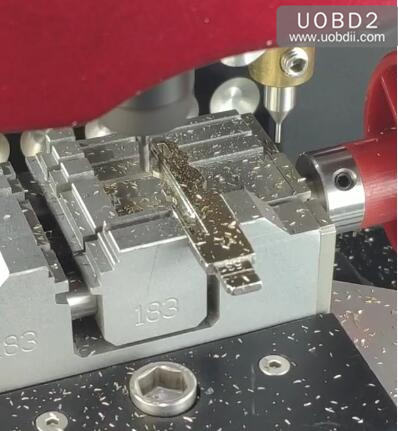

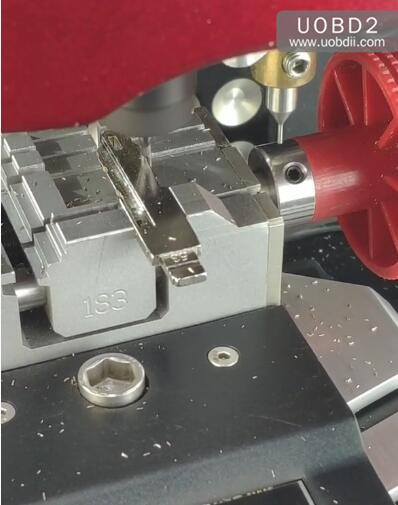

Cutting proceed…

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (12) How to Use 2M2 Key Machine Cut Peugeot NE73 Key (13) How to Use 2M2 Key Machine Cut Peugeot NE73 Key (14)

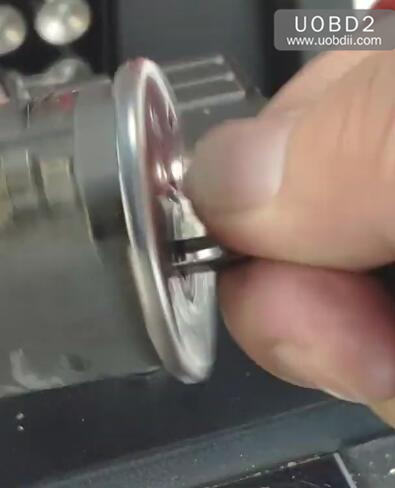

Test work correctly

How to Use 2M2 Key Machine Cut Peugeot NE73 Key (15)

Done!
