This blog is another Honda Acura HON66 key cutting guide by using Condor XC-MINI Key Cutting Machine. It will totally cost you only 5 minutes to cut a Honda HON66 new key. Clear and simple to operate!

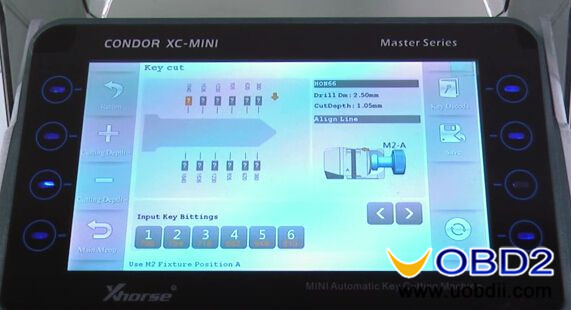

Step1. Click “Cut by Bitting”.
Enter “HON66” to select key.
Select key type.

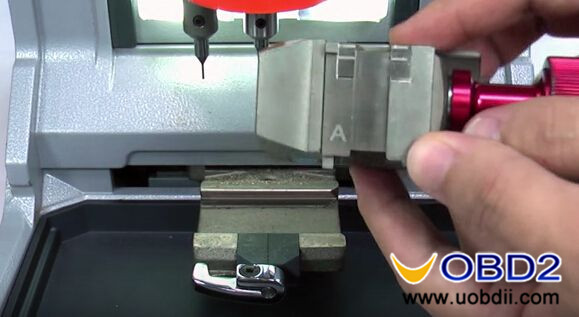

Step2. Use M2 clamp and put side A upwards according to screen diagram. Tighten the clamp.
Put and tighten the original Honda HON66 key on clamp.

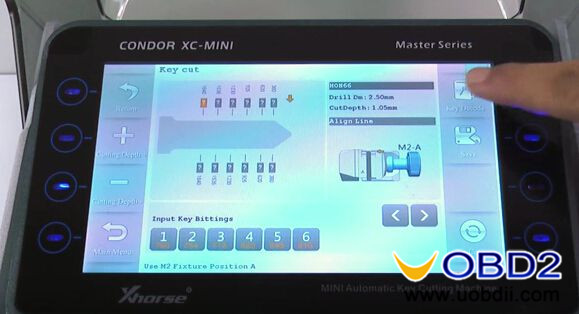

Step3. Click “Key Decode” then click “Confirm”. Now Condor XC-MINI starts to decode the original key.
After that remove the original key and put the new key blade on clamp to tighten.
Step4. Click “Correcting& Cut” to start key duplicating.
Wait a while then one side of Honda HON66 is finished. Use the brush to clean up key blade.
Turn the other side upwards and tighten key blade on clamp. Click “Correcting& Cut” to complete key cutting.
